Automatic Power Factor Correction systems engineered to eliminate DISCOM low power factor penalties and peak-demand surcharges across Delhi NCR, Gurugram, and Manesar. Designed with heavy-duty MPP capacitors, 7% or 14% detuned harmonic reactors, and fast microprocessor multi-step controllers.

1200 kVAr
Modular Capacity
7% / 14%
Detuned Reactors
16 Steps
Intelligent Steps
> 0.98
Maintained PF

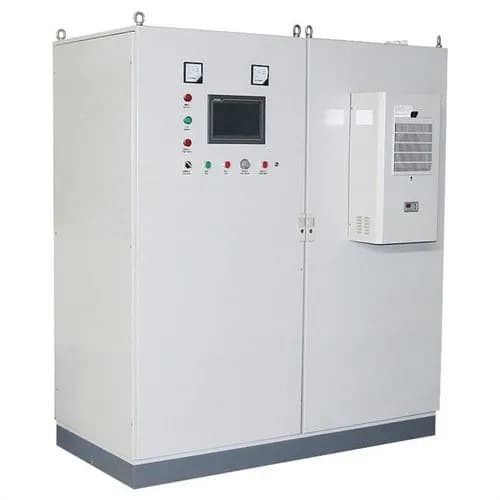

APFC Harmonic Filter Electrical Panel
Switchgear & Capacitor IntegrationSchneider • L&T • Siemens • Epcos
100% FAT Tested
Power Quality & Energy Fundamentals

What is an Automatic Power Factor Correction (APFC) Panel?

In industrial facilities driven by inductive loads—such as induction motors, transformers, welding plants, and compressors—current naturally lags behind voltage. This lag creates reactive power (kVAr), reducing efficiency and driving down the facility's Power Factor (PF). An APFC Panel is an automated capacitor bank cubicle engineered to detect this phase displacement in real time and switch calibrated capacitor banks into the circuit, maintaining operating power factor near unity (> 0.98 to 1.00).

1. Real-Time Sensing

A digital microprocessor APFC controller tracks line voltage (PT) and active load current (CT) continuously, computing instantaneous phase angle displacement and reactive kVAr deficit.

2. Multi-Step Switching

Based on target setpoints, the controller energizes heavy-duty capacitor steps (ranging from 8 to 16 stages) via specialized capacitor-duty contactors or fast solid-state thyristors (TSC).

3. 7% / 14% Detuning

Series copper/aluminium detuned filter reactors shift the circuit resonant frequency below the 5th and 7th harmonics, protecting capacitors from blowing out due to harmonic resonance.

4. Penalty Mitigation

Eliminates DISCOM low power factor penalty surcharges (e.g., DHBVN, UHBVN, BSES, TPDDL), cuts apparent kVA maximum demand charges, and qualifies facilities for power factor rebates.

Comparison: Contactor-Switched APFC vs. Thyristor-Switched (TSC) Harmonic Panels

Choosing the right capacitor switching topology for steady versus fluctuating industrial loads.

System AttributeThyristor-Switched Capacitor (TSC) PanelStandard Contactor-Switched APFC Panel
Switching Response SpeedUltra-fast (< 20 milliseconds) at zero-crossingStandard response (30 to 60 seconds discharge interval)
Ideal Plant Load ProfileSpot welding, CNC machining, cranes & injection moldingSteady continuous loads: spinning mills, pumps & fans
Switching Inrush TransientsZero transient current spikes; smooth solid-state engagementControlled via pre-insertion resistor damping contacts
Mechanical Wear & TearNo moving parts; virtually infinite switching cyclesPeriodic contactor tip replacement required after set operations
Harmonic Filtering StandardIntegrated 7% / 14% detuned copper or aluminium reactorsOptional detuned reactors or standard capacitor banks
Facing DISCOM Low Power Factor Penalties? If your utility bill displays penalties or maximum demand surcharges due to fluctuating power factor, our power quality engineering desk will audit your monthly kWh/kVAh bill and size the exact kVAr capacitor steps, reactor ratings, and payback timeline.
Upload Electricity Bill
Power Quality Optimization

Engineered to Mitigate Harmonics & Maximize DISCOM Rebates

Eliminate utility penalty surcharges while protecting sensitive plant electronics from voltage distortion.

Detuned Harmonic Reactors

7% and 14% copper or aluminium detuned reactors safeguard capacitors by shifting network resonance frequency below standard 5th and 7th harmonic levels, preventing nuisance breaker tripping.

Thyristor-Switched (TSC) Modules

Solid-state zero-crossing thyristor switches connect capacitor steps in less than 20 milliseconds, ideal for fast-fluctuating loads such as welding, robotics, and stamping presses.

Intelligent Microprocessor Logic

Multi-stage 8 to 16 step controllers continuously calculate kVAr deficits, balance capacitor duty cycles to extend lifespan, and provide alarms for high THD-V and over-temperature.

Engineering Parameters

APFC & Harmonic Filter Panel Specifications

Manufactured and inspected strictly in compliance with IS 8623, IEC 61439-1 & 2, and IEC 61921 standards.

Technical ParameterAdhunik Powertech Specification
Rated Capacity Range50 kVAr up to 1200 kVAr (Modular Step Banking)
Target Power FactorMaintains PF > 0.98 to Unity (1.00) continuously
Operational Voltage415V / 440V AC ± 10%, 3-Phase, 50 Hz
Detuned Harmonic Filter Reactors7% (189 Hz) or 14% (134 Hz) Detuned Copper/Aluminium Reactors
Capacitor Duty UnitsHeavy-Duty Metallized Polypropylene (MPP) / APP with self-healing dielectric
Switching TechnologySpecialized Capacitor-Duty Contactors or Fast Thyristor Switched (TSC)
APFC Microprocessor ControllerIntelligent 8 / 12 / 14 / 16 Step Digital Controller with THD-V / THD-I readouts
Busbar Material & SizingElectrolytic Grade Copper / E91E Aluminium (Derated 1.5x for harmonic heating)
Safety ProtectionsInternal discharge resistors, individual HRC fuse backups, over-temperature trips
Enclosure Construction1.6mm / 2.0mm CRCA Sheet, IP42 / IP54, Forced cooling with thermostat fans
Switchgear & Component MakesSchneider Electric, L&T, Siemens, Epcos/TDK, or Others
