Fire Pump & Smoke Pressurization
Panels in Delhi NCR

Life safety electrical starter cubicles engineered for Main Hydrant, Sprinkler, and Jockey pumps alongside staircase and lift-well smoke pressurization blowers across Delhi NCR, Gurugram, and Manesar. Featuring dual power source ATS changeovers, pressure-switch automated cascade sequencing, and full Fire NOC clearance compliance.

NBC 2016
Part 4 Compliant
2-Hour
Fire-Rated Enclosure
ATS Sync
Dual Power Auto Sync
IP55
Gasketed Protection

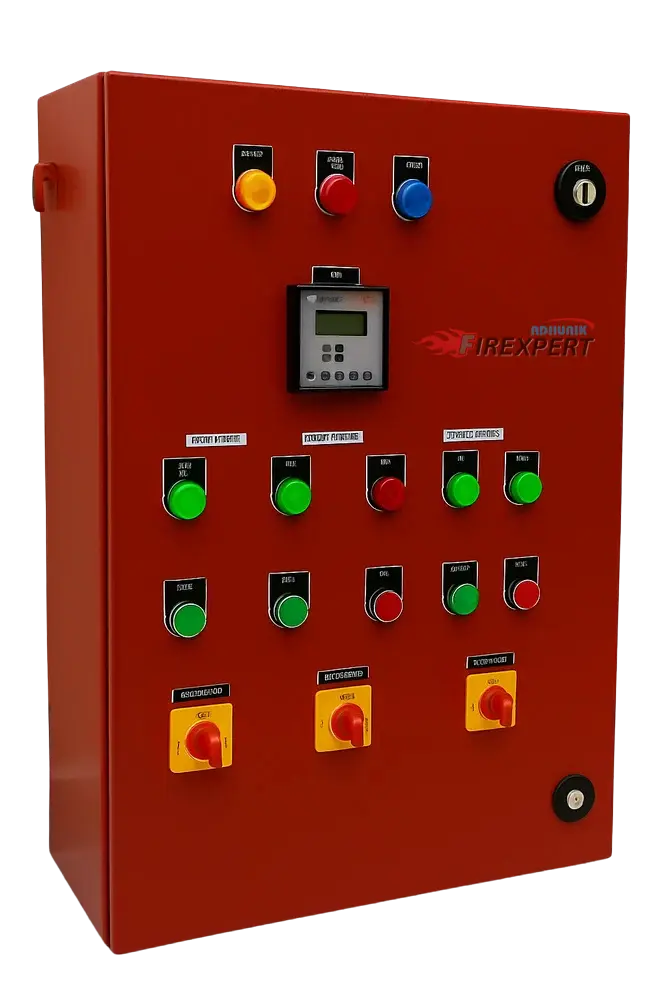

Fire Pump and Smoke Pressurization Control Panel
Switchgear & Starter MakesSchneider • L&T • Siemens • ABB
100% Sequence FAT
Life Safety Engineering Fundamentals

What are Fire Pump & Smoke Pressurization Control Panels?

During a structural fire emergency, standard building power grids are intentionally cut or tripped to prevent electrocution hazards. However, life-safety systems must stay operational without fail. A Fire Fighting & Smoke Pressurization Control Panel is an emergency-grade, fire-resistant electrical switchboard that manages two mission-critical functions: delivering immediate high-pressure water to sprinkler and hydrant lines, and creating positive air pressure along stairwells and lift shafts to keep emergency evacuation paths free of toxic smoke.

1. Fire Pump Starter Panel

Controls the primary hydraulic suppression network, housing heavy-duty Star-Delta or Soft-Starters for the Main Hydrant Pump, Sprinkler Pump, and Jockey Pump.

Wired directly to manifold pressure switches, it initiates automatic cascade pump starts upon pressure drops, bypassing thermal overloads to run continuously through active emergency suppression.

Standard: NBC 2016 Part 4 & NFPA 20 compliant
Logic: Pressure switch automated cascade starting

2. Smoke Pressurization Panel

Operates high-velocity centrifugal and axial supply air blowers dedicated to vertical fire escape routes, including emergency stairwells and lift shafts.

Upon receiving a signal from the Fire Alarm Control Panel (FACP), it creates a positive pressure barrier (typically 50 Pa), preventing hot poisonous gases from infiltrating staircases.

Objective: Smoke-free emergency human egress routes
Interlock: Direct potential-free Fire Alarm (FACP) link

3. Dual Power ATS & Engine Sync

Integrates an automatic 4-pole Automatic Transfer Switch (ATS) transitioning between grid mains and captive emergency generator power within seconds.

Also synchronizes the standby diesel engine pump controller, managing 12V/24V dual battery float-boost chargers, crank timers, oil pressure sensors, and water temperature interlocks.

Transfer: 4-Pole motorized ATS electrical interlocking
Engine Care: Dual battery float-boost automated chargers

Comparison: Fire Pump Starter Panels vs. Smoke Pressurization Panels

Technical differences in trigger mechanisms, run logic, and emergency override standards.

Engineering AspectFire Water Pump Control PanelStaircase & Lift Pressurization Panel
Primary Activation TriggerHeader pressure drop via calibrated mechanical pressure switchesSmoke detector activation / FACP fire alarm trip signal
Connected Equipment LoadsMain Hydrant Pump, Sprinkler Pump, Jockey Pump, Diesel EngineStairwell Blowers, Lift Shaft Fans, Basement Jet Fans
Thermal Overload BehaviorBypassed during fire mode (runs to failure to maintain water)Thermal trips bypassed; manual lockable overrides provided
Enclosure Rating & FinishIP55 2.0mm CRCA Sheet, Fire Signal Red (RAL 3000 / 3001)IP54/IP55 2-hour fire-rated steel or standard RAL 7035
Regulatory ComplianceNBC 2016 Part 4, NFPA 20, Local Fire Authority NOC clearanceNBC 2016 Clause 4.4.2.5 (Positive pressure smoke barriers)
Facing Stringent Fire NOC Inspection Standards? Fire departments across Delhi NCR, Haryana, and Uttar Pradesh require verified dual power auto-changeover, labeled auto-manual selector keys, and documented FAT sequence records. Adhunik Powertech designs panels fully verified to meet local Chief Fire Officer (CFO) and MEP consultant requirements on first inspection.
Submit Pump Room BOQ
Mission-Critical Life Safety

Engineered for Zero Failure During Fire Emergencies

Combining pressure-triggered automatic pump cascading, diesel engine synchronization, and life-safety escape route smoke pressurization.

Pressure Switch Cascade Logic

Monitors header pressure to automate Jockey, Main Electric, and Diesel Standby engine starters in calibrated stages, maintaining continuous hydrant and sprinkler ring pressure.

Dual Power Automatic ATS Sync

Heavy-duty motorized automatic source changeover between electrical grid mains and captive emergency generator power ensures continuous pump operation without operator intervention.

Stairwell & Lift Pressurization

High-capacity smoke extraction and positive-pressure air supply fan controls interface directly with the Fire Alarm Panel (FACP) to secure escape paths for safe building evacuation.

Engineering Parameters

Fire Pump & Pressurization Control Panel Specifications

Manufactured and inspected strictly in compliance with NBC 2016 Part 4, IS 8623, and IEC 61439-1 & 2 standards.

Design SpecificationAdhunik Powertech Engineering Parameter
Governing StandardsNational Building Code (NBC 2016 Part 4), IS 8623, IEC 61439-1 & 2, NFPA 20
Enclosure Construction2-Hour Fire-Rated Sheet Steel (2.0mm CRCA), IP55 Dust & Water Jet Ingress Protection
Dual Power Auto-ChangeoverFour-Pole Motorized ATS / Incomer AMF logic (Normal Mains + Captive Emergency DG)
Pump Starter TopologiesAutomatic Star-Delta & Soft-Starters for Main Hydrant/Sprinkler; DOL for Jockey Pump
Diesel Engine Controller SyncEngine starting contactors, 12V/24V dual battery charger, speed & oil pressure trips
Pressure Cascade StagingDirect multi-stage pressure switch inputs for automated Jockey-Hydrant-Sprinkler cascading
Smoke Pressurization & ExhaustDedicated starters for Staircase Pressurization, Lift-Well Blowers & Basement Jet Fans
Fire Alarm (FACP) InterfacePotential-free alarm input contacts, auto-override of thermal overloads during fire runs
Internal Wiring SpecificationFire Survival (FS) / FRLS ZHFR copper wiring rated up to 950°C for circuit integrity
Enclosure Finish7-Tank Chemical Processed, Pure Polyester Powder Coated in Signal Red (RAL 3000 / 3001)
Northern India Engineering Network

Supplying Fire Pump & Pressurization Panels Across Major Industrial Hubs

Delhi NCRGurugramFaridabadNoidaGreater NoidaGhaziabadSonipatPanipatRohtakRewariPalwalBhiwadiMeerutNeemranaTapukaraBawalManesarDharuheraMuzaffarnagarJaipurChandigarh
Fire Electrical Engineering Consultation

Request a Fire Pump Panel Proposal

Submit your pump room motor schedule, pressurization fan ratings, or tender BOQ. Our fire engineering team will verify starter coordination, battery charger sizing, and deliver a comprehensive proposal.

Directly routed to Adhunik Powertech life safety electrical engineering desk.

Frequently Asked Technical Questions

Preparing Fire Fighting Drawings for Fire NOC Approval?

Our life-safety engineering team in Gurugram / Delhi NCR reviews pump schedules and delivers complete GA layout drawings, wiring schematics, and commercial quotes.
