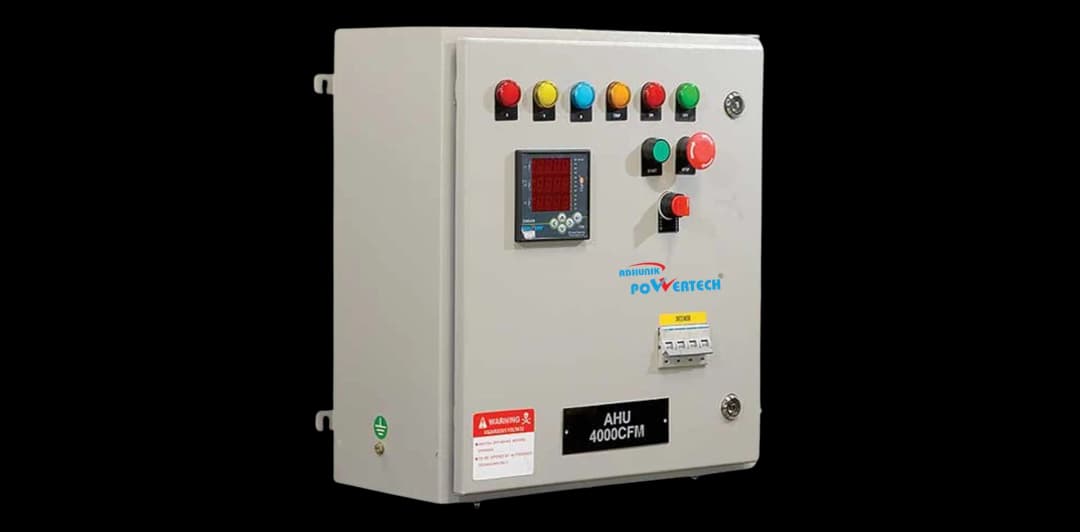

HVAC and Air Washer Electrical Control Panel
Switchgear & Drive IntegrationSchneider • L&T • Siemens • Danfoss
100% Sequence Tested
Electrical Fundamentals

Understanding HVAC, AHU & Air Washer Electrical Control Panels

In commercial developments, cleanrooms, and industrial factories, airside systems operate on dynamic fluid dynamics—varying duct pressure, filter resistances, and ambient moisture. Dedicated HVAC electrical panels act as the operational brain, coordinating motor speed, dampering, and safety interlocks.

What is an HVAC Control Panel?

An HVAC Electrical Control Panel is an overarching centralized switchboard engineered to govern the entire heating, ventilation, and air conditioning plant room.

It synchronizes primary and secondary chilled water pumps, condenser pumps, cooling tower fans, and ventilation exhausts with central Building Management Systems (BMS) over BACnet or Modbus protocols.

Primary Role: Central chiller plant & ventilation sequencing
Integration: Native BACnet IP / Modbus RTU telemetry

What is an AHU Control Panel?

An Air Handling Unit (AHU) Control Panel controls individual supply and return air blowers. It adjusts airflow to regulate room temperature and maintain cleanroom static pressure.

It houses Variable Frequency Drives (VFDs) linked to duct static pressure sensors, interfaces with motorized fire dampers, and tracks differential pressure (ΔP) switches across HEPA/Pre-filters.

Primary Role: Static ΔP speed control & fire damper cutoff
Safety: Fail-safe smoke extraction & filter warning trips

What is an Air Washer Control Panel?

An Air Washer Control Panel is an electro-mechanical cubicle designed for single-stage and two-stage evaporative cooling systems.

It interlocks high-CFM supply air blowers with water circulation pumps, incorporates multi-level sump tank liquid sensors (dry-run prevention), and regulates auto-fill and auto-drain purging cycles.

Primary Role: Blower & water pump synchronization
Interlocks: Sump water level, dry-run protection & lead-lag pumps

Comparison: HVAC vs. AHU vs. Air Washer Control Panels

Technical differences in control loops, field devices, and life-safety cutoffs.

System AttributeAHU Starter & VFD PanelAir Washer Control PanelCentral HVAC Switchboard
Primary Managed LoadsSupply/Return Air Fans (5 HP to 60 HP)High-CFM Blowers & Submersible PumpsChillers, Secondary Pumps & Cooling Towers
Speed Regulation LogicVFD PID loop via Duct Static ΔP TransducerDual-speed starter or seasonal VFD modulationDifferential pressure (ΔP) & temperature staging
Field InterlocksMotorized Fire Damper (MFD) & Filter DPWater Level Sensors (High/Low) & Float ValvesFlow Switches, BTU meters & Chiller Interlocks
Emergency Fire SequenceAuto fan shutoff on smoke / MFD micro-switch tripBlower cutoff / Emergency exhaust switchoverStaircase pressurization & basement smoke dump
Need Integrated BMS & Energy Efficiency? Adhunik Powertech designs AHU and Air Washer panels with native BACnet IP and Modbus RS485 communication cards. This gives facility engineers remote control over VFD frequencies, filter replacement alerts, and motor run hours without dedicated external hardware gateways.
Submit Airside BOQ
Electro-Mechanical Harmony

Precision Airside Regulation & Life-Safety Interoperability

Unlike generic motor panels, Adhunik HVAC switchboards are tailored specifically around air aerodynamics, filter resistance, and damper safety.

Static Pressure VFD Modulation

Direct closed-loop integration with in-duct differential pressure (ΔP) sensors. As zone VAV dampers adjust, the fan speed modulates smoothly to maintain duct integrity and drastically cut motor kWh usage.

Motorized Fire Damper Interlock

Fail-safe cut-offs interface with 24V/230V motorized fire dampers. In an emergency, supply air fans shut down instantly to stop smoke circulation, while stairwell pressurization fans initiate automatically.

Native BMS Gateway (BACnet & Modbus)

Equipped with open protocol cards (BACnet IP, MS/TP, Modbus RTU) to deliver real-time motor frequency, running current, trip fault diagnostics, and energy data to your central Building Management System.

Certified Engineering Parameters

HVAC & Air Washer Control Panel Data Sheet

Manufactured and type-tested in compliance with IS 8623, IEC 61439-1 & 2, and National Building Code (NBC) standards.

Design SpecificationAdhunik Powertech Engineering Parameter
Target ApplicationsAir Handling Units (AHUs), Evaporative Air Washers, TFA, Cleanroom HVAC, Pumping Stations
Operating Voltage & Frequency415V AC ± 10%, 3-Phase, 4-Wire, 50 Hz (230V Auxiliary Control)
VFD Speed Modulation LoopsClosed-loop PID based on Duct Static Pressure (ΔP Transducer feedback)
Filter Monitoring InterlocksContinuous Differential Pressure (DP) switch telemetry across Pre, Fine, and HEPA filters
Fire & Life-Safety SequenceHardwired Fire Damper Trip Interlock, Smoke Exhaust Mode, and Auto Fan Cutoff
Building Automation ProtocolsNative BACnet IP / MS-TP, Modbus RTU (RS485), and Potential-Free Status Contacts
Starter & Drive TopologyVFD with Auto/Manual Bypass, Soft-Starters, DOL, and Star-Delta for standby pump sets
Enclosure Ingress ProtectionIP54 (Indoor Mechanical Rooms) / IP55 / IP65 (Continuous CNC PU Foam Gasketing)
Thermal Management OptionsForced Exhaust Air Louvers with Washable Dust Filters or Closed-Loop Industrial Panel AC
Switchgear Component MakesSchneider Electric, L&T Electrical, Siemens, ABB, Danfoss, or Delta Drives
Internal Wiring & TerminationFlame Retardant Low Smoke (FRLS) / ZHFR copper wiring with numbered terminal ferrules
Application Focus

Specialized Control Panels for Air Systems

Customized hardware logic built to match each specific airside installation across commercial and industrial facilities.

Air System 01

Air Handling Units (AHU)

Equipped with VFD fan modulation, return air temperature reset, motorized damper actuator sync, and dirty filter DP alarms.

Air System 02

Evaporative Air Washers

Integrated water tank level switches (high/low cutoff), auto float valves, dual pump lead-lag rotation, and main blower interlocking.

Air System 03

Treated Fresh Air (TFA)

Enthalpy wheel or heat recovery wheel speed regulation, pre/post heater coil control, and CO2 demand ventilation monitoring.

Air System 04

Staircase Pressurization

NBC-compliant smoke extraction and lift-well pressurization fan starters featuring emergency manual overrides and dual power changeover.
