Power Control Center (PCC) &
Main LT Distribution Panels

Engineered as the primary electrical backbone for heavy manufacturing plants, automotive corridors, and commercial high-rises. Adhunik Powertech builds custom substation intake boards with motorized source synchronization, Form 4b internal segregation, and verified 65kA short-circuit fault withstand capacity.

4000A
Rated Current
65 kA
1-Sec Fault Rating
Form 4b
Segregation Standard
IP54 / IP55
PU Gasketing Seal

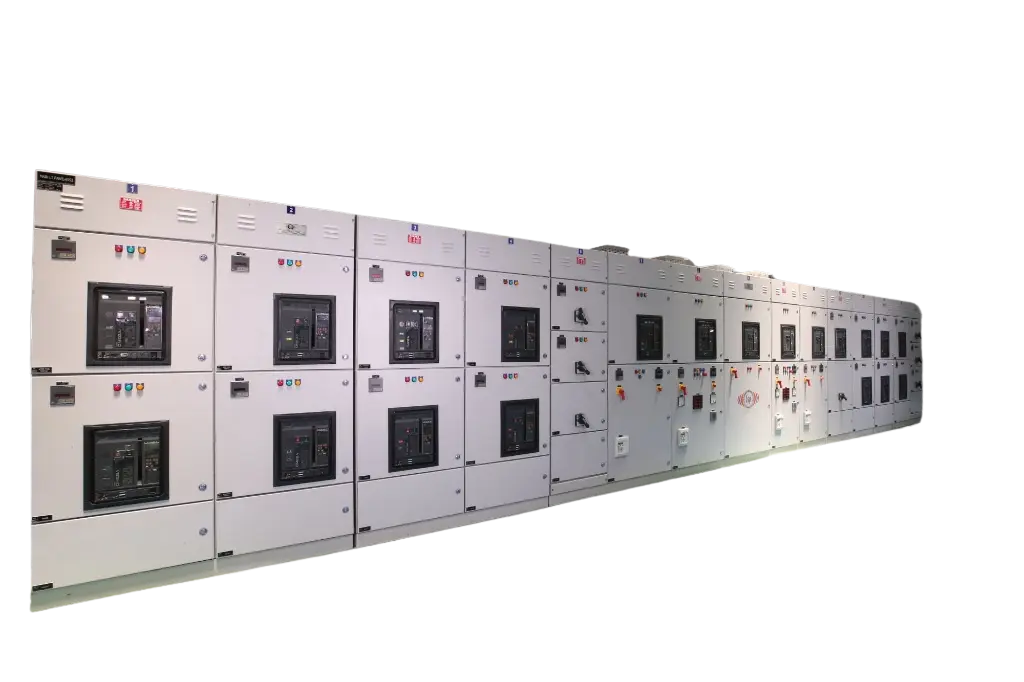

PCC and Main LT Distribution Panel
Incomer Switchgear BrandsSchneider • L&T • Siemens • Others
100% FAT Sequence Tested
Electrical Architecture & Fundamentals

Understanding Low Tension (LT) Panels & Power Control Centers (PCC)

In industrial plants and commercial high-rises, managing incoming bulk power safely requires clear structural segregation between primary intake and secondary distribution.

What is a Low Tension (LT) Panel?

A Low Tension (LT) Panel is a collective term for any electrical switchboard designed to operate under low-voltage thresholds—typically 415V AC (three-phase, 50 Hz) or 230V AC (single-phase).

It acts as the broad power distribution infrastructure across a facility, receiving stepped-down electricity from secondary substation transformers and routing it to departmental switchboards, lighting feeders, auxiliary panels, and HVAC systems.

Operating Voltage: 415V AC ± 10%, 3-Phase, 4-Wire
Primary Function: Facility-wide power distribution & branch metering

What is a Power Control Center (PCC)?

A Power Control Center (PCC Panel) is the heavy-duty master intake board at the apex of the LT hierarchy. It is terminated directly at the secondary terminals of the distribution transformer or captive diesel generators (DG sets).

Built to carry massive currents (from 1000A up to 4000A), a PCC incorporates heavy-duty drawout Air Circuit Breakers (ACBs), automated source changeover schemes (AMF/Bus Couplers), and Form 4b internal segregation to withstand severe fault events (up to 65kA for 1 second).

Current Rating: 1000A up to 4000A continuous
Fault Level: CPRI tested 50kA / 65kA for 1.0 second

Key Technical Comparison: PCC Panel vs LT Panel.

How to select the right switchboard tier for your electrical single-line diagram (SLD).

Comparison ParameterPower Control Center (PCC)General LT Distribution Panel
Grid Hierarchy PositionPrimary intake directly from Transformer or DG setsSecondary distribution downstream from the PCC board
Current Carrying CapacityHigh amperage: 1000A up to 4000A continuousMedium to low: 63A up to 1000A
Primary Switchgear TypeDrawout Air Circuit Breakers (ACB) with LSIG logicMolded Case Circuit Breakers (MCCB) & MCBs
Internal SegregationForm 3b / Form 4b (IS 8623 / IEC 61439-1 & 2)Form 2b / Form 3b compartmentalization
Fault Withstand Capacity50kA / 65kA rms for 1.0 second (Substation rated)25kA / 35kA rms for 1.0 second
Mission-Critical Power Distribution

Engineered for Maximum Continuity & Complete Operator Safety

Adhunik Powertech PCC boards combine heavy-gauge fabrication with smart protective relaying.

Intelligent ACB Incomers

Drawout Air Circuit Breakers up to 4000A with microprocessor-based LSIG (Overload, Short-Circuit, Instantaneous, Earth Fault) trip units, offering zone-selective interlocking (ZSI) and motorized remote operation.

Form 4b Isolation Alleys

Total separation between busbars, functional breaker compartments, and external cable connection alleys ensures that technicians can service isolated feeder modules without de-energizing the main power line.

Auto-Source Synchronization

Dual incomer changeover schemes (Transformer + Captive Generator) with programmable bus-coupler logic, auto-mains-failure (AMF) controllers, and reverse power protection for seamless changeover.

Certified Design Standard

PCC Switchboard Engineering Data Sheet

Manufactured and inspected strictly in compliance with IS 8623 and IEC 61439-1 & 2 standards.

Design ParameterAdhunik Powertech Specification
Rated Operational Voltage (Ue)415V AC ± 10%, 3-Phase, 4-Wire, 50 Hz
Rated Insulation Voltage (Ui)1000V AC / 690V AC Rated Impulse Withstand (8kV)
Rated Current Capacity (In)630A up to 4000A Continuous Rating (Thermal Derated)
Short-Circuit Fault Withstand50kA / 65kA rms for 1.0 Second (CPRI Type-Tested)
Internal CompartmentalizationForm 3b / Form 4b (IS 8623 / IEC 61439-1 & 2 Compliant)
Busbar Material & GradeElectrolytic Grade Copper (99.9% IACS) or E91E Aluminium
Busbar InsulationFull Heat-Shrinkable PVC Sleeves with Color-Coded Phase Indicators
Enclosure Construction1.6mm / 2.0mm CRCA Sheet Metal, Modular Non-Welded Frame
Surface Finish & CoatingAutomated 7-Tank Pretreatment, 60–80μm Pure Polyester Powder Coat (RAL 7032/7035)
Ingress Protection ClassIP42 (Standard Indoor) / IP54 / IP55 (Continuous CNC PU Foam Gasketing)
Incomer Switchgear OptionsAir Circuit Breakers (ACB) 3P/4P Drawout with Microprocessor LSIG Trip Releases
Outgoing FeedersFixed / Drawout ACB, MCCBs with Adjustable Thermal-Magnetic or Electronic Releases
Metering & TelemetryClass 0.5 / Class 1.0 Smart Digital Multi-Function Meters with RS485 Modbus RTU
Quality Assurance

Rigorous 4-Stage Factory Acceptance Testing (FAT)

We invite clients, consultants, and inspection agencies to witness full validation prior to dispatch.

01

Megger Test (1000V DC)

Phase-to-phase and phase-to-earth insulation resistances tested above certified threshold limits.

02

High-Voltage (2.5 kV)

Auxiliary and main busbar power circuits subjected to 2500V AC for 60 seconds without leakage.

03

Busbar Torque Verification

Joint conductivity confirmed with calibrated torque wrenches and high-current millivolt drop inspection.

04

Functional Interlock Checks

Live simulation of ACB auto-trip cycles, bus-coupler interlocks, and Modbus meter register polling.
