Panel AC for CNC Machines: Sizing, Installation & VFD Protection
In high-precision machining environments, modern CNC turning centers, vertical machining centers (VMCs), and multi-axis milling cells generate severe thermal loads inside sealed electrical control cabinets.
High-frequency IGBT switching in spindle drives, multi-axis servo packs, and CNC power supplies generates substantial heat. When combined with shop-floor ambient temperatures exceeding 45°C and airborne coolant mist, unconditioned cabinets face thermal trips, encoder drift, and catastrophic component burnout.
Closed-loop panel air conditioners provide dedicated, hermetically sealed refrigeration that preserves IP54/IP55 enclosure integrity while keeping electronics within safe operating thresholds.
The Dual Threat: Why CNC Enclosures Fail on Modern Shop Floors
Conventional louvers and exhaust fans pull in ambient plant air. On machining floors, this introduces two destructive failure mechanisms:
Spindle and servo drives dissipate approximately 2.5% to 3% of rated power directly as heat. A 30 kW spindle and three 3 kW axis servo drives dump over 1,170 Watts of heat inside a compact box. Every 10°C rise above 40°C halves the operating life of busbar capacitors and triggers frequent drive over-temperature faults (OH / AL-022).
Flood coolants vaporize during aggressive cuts. When intake fans pull this aerosol inside, oil deposits an insulating film across heat sinks and logic cards. Metallic swarf sticks to this oil film, bridging closely spaced PCB traces and causing sudden arc-flash failure across high-voltage terminal rails.
CNC Panel AC Heat Load Calculation Formula
Standard Engineering MethodAvoid guessing cooling capacity. Sizing an enclosure air conditioner requires calculating both internal component heat dissipation and exterior transmission heat:
Step 1: Internal Component Heat (Q_Internal)
- Spindle VFD: Rated motor power (kW) × 0.030 × 1000 = Watts
- Servo Drives: Combined servo kW × 0.030 × 1000 = Watts
- CNC Controller & Logic: Flat 150W to 200W estimate
- 24V SMPS & Control Transformers: Output rating × 15% efficiency loss
Step 2: Surface Heat Gain (Q_Transmission)
Q_Transmission = k × A × (T_Ambient - T_Internal)
- k-factor: 5.5 W/m²·K (mild steel) | 4.5 W/m²·K (stainless steel)
- A (Exposed Surface Area): 1.8 × H × (W + D) + 1.4 × (W × D) in m²
- ΔT: Peak shop floor ambient (e.g. 45°C) minus target interior (35°C)
Example: A standard 2.0m × 1.0m × 0.6m enclosure housing an 18.5 kW spindle drive, three 2.5 kW axis servos, and CNC logic in a 45°C workshop has an internal load of 960W and transmission load of 363W (Total: 1,323W). Factoring in a 15% safety margin indicates a 1,521 Watt requirement — making an Adhunik 1500W (WMS-0015) or 2000W (WMS-0020) unit optimal.

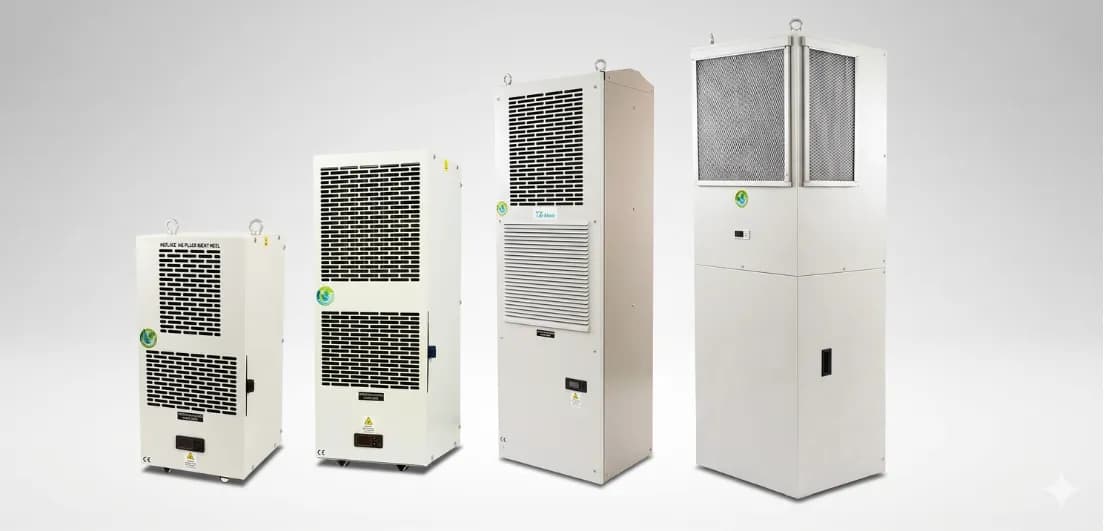

Technical Specifications: Adhunik CNC Panel Air Conditioners
| Parameter | WMS-0010 (Side Mount) | WMS-0015 (Side Mount) | TMT-0010 (Top Mount) | TMT-0015 (Top Mount) |
|---|---|---|---|---|
| Cooling Capacity (Watts) | 1000 Watt | 1500 Watt | 1000 Watt | 1500 Watt |
| Cooling Capacity (BTU/hr) | 3412 BTU | 5119 BTU | 3412 BTU | 5119 BTU |
| Dimensions (D × W × H mm) | 285 × 300 × 785 | 285 × 310 × 785 | 395 × 655 × 345 | 395 × 655 × 345 |
| Power Input (Watt / Amp) | 770 W / 3.5 A | 924 W / 4.2 A | 770 W / 3.5 A | 924 W / 4.2 A |
| Air-Flow Volume (CMH) | 221 CMH | 238 CMH | 221 CMH | 238 CMH |
| Compressor Make | Emerson / Danfoss | Emerson / Danfoss | Emerson / Danfoss | Emerson / Danfoss |
| Refrigerant / Temp Rating | R-134a | Up to 55°C Ambient | R-134a | Up to 55°C Ambient | R-134a | Up to 55°C Ambient | R-134a | Up to 55°C Ambient |
Choosing Mounting Types: Side Mount vs. Top Mount
Side / Door Wall Mount (WMS Series)
The standard mounting configuration for freestanding CNC machine tool cabinets, automation panels, and operator control consoles.
- Direct bottom-to-top air circulation straight across vertical VFD heatsinks.
- Simple eye-level inspection of digital controllers and mesh filter status.
- Fast door cutout integration using standard factory templates.
Roof / Top Mount (TMT Series)
Designed specifically for tightly packed machine tool floors where aisle clearance and door swing radii are restricted.
- Discharges chilled air vertically downward over top-mounted power busbars.
- Zero footprint encroachment in narrow maintenance walkways.
- Eliminates structural door-sag on wider, thin-gauge sheet metal cabinets.
Engineering Best Practices for CNC Installation
Maintain 32°C–35°C Setpoint
Setting controllers below 28°C causes thermal waste and drops internal cabinet surfaces below dew point, creating dangerous condensation on live busbars.
Wire Door Interlock Switch
Connect the door microswitch to the AC cut-off contact. Leaving doors open during setups pulls warm room moisture in, causing evaporator coil icing.
Clean Washable Mesh Monthly
Wash the external aluminum condenser filter in warm, degreasing solution every 15–30 days to clear oil mist and prevent high-pressure compressor trips.
Serving Industry Leaders
Across India
Recognizing the severe thermal demands of modern machine shops, Adhunik Powertech proudly provides cutting-edge panel air conditioner solutions and field engineering support to major precision machining hubs across India.
We address the crucial thermal management needs of businesses in Ahmedabad, Pune, Hyderabad, Chennai, Mumbai, Goa, Vishakhapatnam, Bhopal, Kolkata, Jaipur, Faridabad, Bangalore, Noida and Delhi NCR, as well as in thriving industrial zones throughout Gujarat, Rajasthan, Chhattisgarh, and Odisha.
Wherever your CNC and automated machine tools operate, trust Adhunik Powertech for heavy-duty, continuous cooling.
Trusted By Industry Giants (21+ Years)
With over 21+ Years of manufacturing experience, ISO 9001:2015, CE compliance, and GeM OEM registration, Adhunik Powertech delivers industrial cooling systems built to perform.
Need Engineering Sizing for Your CNC Panels?
Prevent spindle drive trips and oil mist damage. Connect with our application engineers for custom heat load audits, 2D/3D CAD cutouts (STEP/DWG), and sizing verification.
Adhunik Powertech manufactures engineered Panel Air Conditioners from 250W to 7000W for industrial machining across India.
