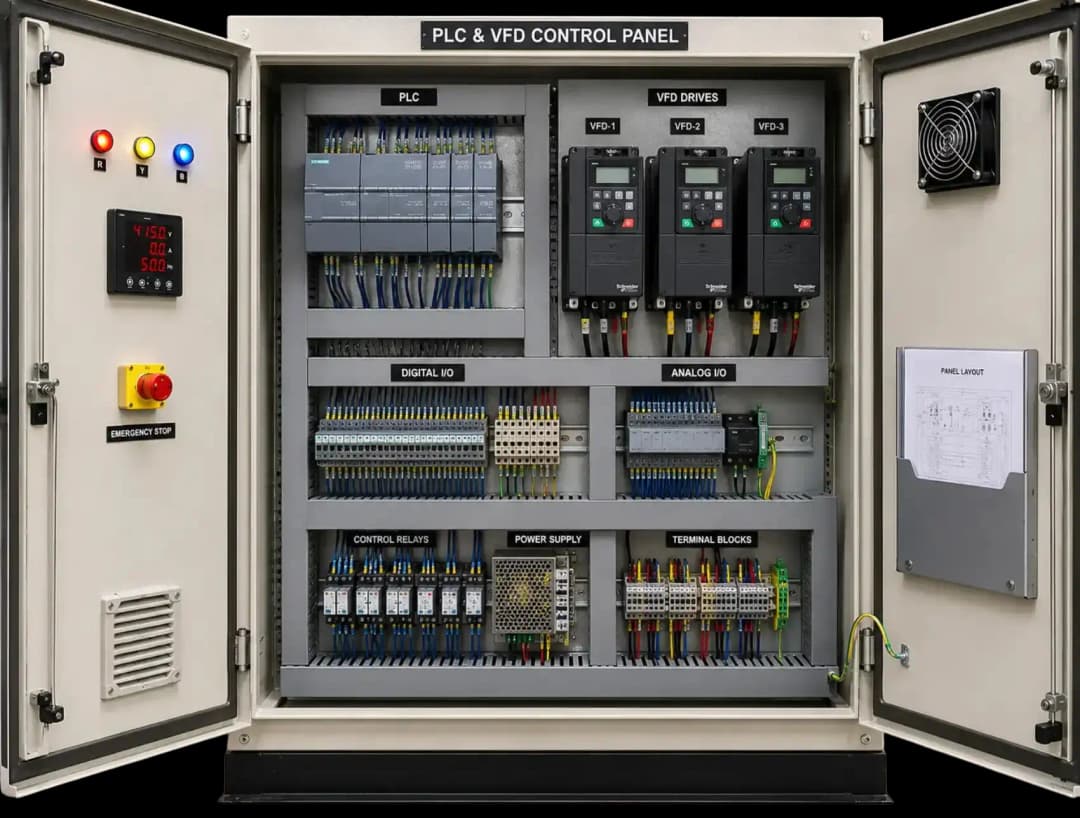

VFD and PLC Process Automation Electrical Panel
Supported Hardware PlatformsSiemens • Schneider • Delta • ABB
100% Sequence FAT
Industrial Automation Fundamentals

What is a VFD & PLC Process Automation Control Panel?

In modern industrial manufacturing and complex fluid systems, fixed-speed motor running results in massive energy wastage, mechanical shock, and sluggish process control. A VFD & PLC Process Automation Panel combines intelligent digital logic controllers (Programmable Logic Controllers) with solid-state speed regulators (Variable Frequency Drives) and operator touchscreens (HMIs) inside a climate-controlled enclosure. This setup automates multi-motor sequences, matches motor output to dynamic process demands, and delivers complete real-time production telemetry.

1. The Brain: Programmable Logic Controller (PLC)

The PLC reads field sensors (pressure, temperature, flow, limit switches) across digital and analog I/O channels.

Running tailored logic programs (Ladder, FBD, SCL), it handles complex interlocking, automatic lead-lag equipment rotation, safety cutoffs, and recipe-driven batch sequencing.

Supported Hardware: Siemens (S7-1200 / 1500), Schneider, Delta, Allen-Bradley
Core Execution: Closed-loop PID algorithms & safety sequencing

2. The Muscle: Variable Frequency Drive (VFD)

The VFD converts incoming 50 Hz AC power into an adjustable frequency and voltage output, modulating induction motor RPM smoothly from 0 to 100%.

This eliminates starting inrush current spikes, prevents hydraulic water hammer in long pump pipelines, and reduces plant electrical consumption by up to 30–50% under partial loads.

Protective Topology: AC line chokes, dV/dt filters & bypass contactors
Energy Impact: Smooth ramp start, soft stop & kW optimization

3. The Interface: Touchscreen HMI & Fieldbus

Industrial color touchscreens (7" to 15") mounted on panel doors display dynamic machine mimic diagrams, live process curves, and detailed fault history.

Digital networking via Profinet, Ethernet/IP, or Modbus eliminates thick bundles of hardwired multi-core cabling and allows direct integration into facility SCADA and cloud IoT dashboards.

Touchscreen Displays: 7" to 15" high-resolution IP65 front bezels
Protocols: Profinet, Modbus TCP/RTU, Ethernet/IP, BACnet

Comparison: Integrated PLC-VFD Automation Panels vs. Conventional Starter Panels

Why modern facilities are transitioning from electro-mechanical relay logic to digital PLC automation cubicles.

System CharacteristicIntegrated PLC + VFD Automation PanelConventional DOL / Star-Delta Starter Panel
Motor Speed & Torque ControlContinuous variable modulation (0–100%) via PID loop feedbackFixed 100% full-speed running only; zero operational modulation
Starting Inrush CurrentSoft, progressive ramp up (1.0x to 1.5x full load current)Severe current spikes (6x to 8x rated current) causing voltage dips
Process Flexibility & LogicSoftware reprogrammable; recipe control, staging, timers & logicRigid physical timers and auxiliary contactor relay wiring
Diagnostics & Operator VisibilityFull color HMI graphic screens with timestamped trip alarmsBasic door pushbuttons and red/green indicator lamps only
Energy Consumption ImpactCube law power savings (affinity laws) on centrifugal pumps and fansMotors pull maximum power; throttled via inefficient mechanical dampers/valves
Engineered for High-Ambient Industrial Sheds: VFD drives and electronic power supplies dissipate notable heat. During Delhi NCR summers (exceeding 45°C), uncooled enclosures lead to drive tripping and microprocessor failure. Adhunik Powertech designs automation enclosures with integrated closed-circuit industrial panel air conditioners that keep internal core temperatures strictly below 35°C.
Submit Automation Specs
Integrated Process Control

Engineered for Seamless Machine Synchronization & Operator Visibility

Combining precision speed regulation, intuitive touchscreen interfaces, and industrial-grade thermal safeguarding.

Custom Dynamic SCADA & HMI

Color touchscreen interfaces engineered with graphic mimic process diagrams, per-motor speed control sliders, live trend curves, and timestamped fault history for rapid diagnostics.

Line Reactors & Harmonic Chokes

Integrated input AC line reactors and output filters shield delicate drive electronics from supply-side voltage spikes while mitigating motor winding insulation stress across long cable runs.

Internal Climate Management

High-capacity exhaust fans or closed-circuit industrial panel air conditioner units keep internal enclosure temperatures below 35°C, preventing high-ambient processor throttling.

Engineering Parameters

VFD & PLC Automation Cubicle Technical Data

Manufactured and tested strictly in compliance with IS 8623, IEC 61439-1 & 2, and IEC 61800-3/5 drive standards.

Design SpecificationAdhunik Powertech Engineering Parameter
Target Automation SystemsMulti-Pump Cascade Staging, Material Handling, HVAC VFD Loops, Extruders, Batch Mixing
Supported PLC PlatformsSiemens (S7-1200 / S7-1500), Schneider (Modicon M221/M241), Delta, Allen-Bradley
Human Machine Interface (HMI)7" to 15" Color Touchscreen with Custom Dynamic Mimic Visualizations & Alarm Logs
Variable Frequency Drives (VFD)0.75 kW to 315 kW Heavy Duty Drives (Danfoss, Schneider, Siemens, ABB, Delta)
Harmonic & Spike ProtectionBuilt-in Line Reactors (AC Chokes), Output dV/dt Filters, and EMI/RFI Line Suppressors
Industrial Fieldbus NetworksProfinet, Ethernet/IP, Modbus TCP/RTU, RS485, and Profibus-DP Architectures
Thermal Enclosure ConditioningForced Louver Air Cooling or Closed-Loop Industrial Panel Air Conditioners (<35°C Internal)
Control Supply & Safety Isolation24V DC Regulated SMPS, Galvanic Analog Isolators, Relays & Surge Protection (SPD)
Enclosure Ingress ProtectionIP54 (Mechanical Rooms) / IP55 / IP65 (Dust-proof Polyurethane PU Gasketed)
Panel Steel & Pre-treatment1.6mm / 2.0mm CRCA Sheet, 7-Tank Pretreated, Electrostatic RAL 7035/7032 Powder Coat
Programming & CommissioningFull Ladder / FBD / SCL logic development, on-site loop checking, and SCADA integration
